Model :TDAGV-25V-4.5AH-DC
SPECIFICATION
| TDAGV-25V-4.5AH-DC | LiFePO4 Battery |
| Nominal Voltage (V) | 25.6 |
| Nominal Capacity (Ah) | 4.5 |
| Cycle life | ~ 500 times 80% remained |
| Safety performance | No corrosion, No polution |
| Can store electricity for 10-15 minutes with 2A discharge current | |
| Current charging | 2A |
| Voltage charging | If the UPS input voltage is greater than the UPS voltage by 1V, the UPS will automatically charge. |
| Voltage output | 24-28.4V |
| Voltage output (Max) | 2A |
| Dimension (LxWxH) (mm) | 200x300x110 |
Description
TDAGV-25V-4.5AH-DC is a DIN-rail mounted DC UPS module that is connected to a power supply to provide backup power. When the DC power source is interrupted, the load is immediately supplied by the battery pack, thereby preventing power interruption and ensuring continuous operation of the entire system. The backup operating time depends on the capacity of the battery pack

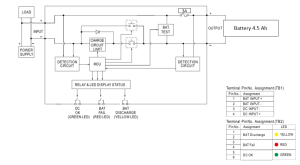

Block diagram
Derating Curve
